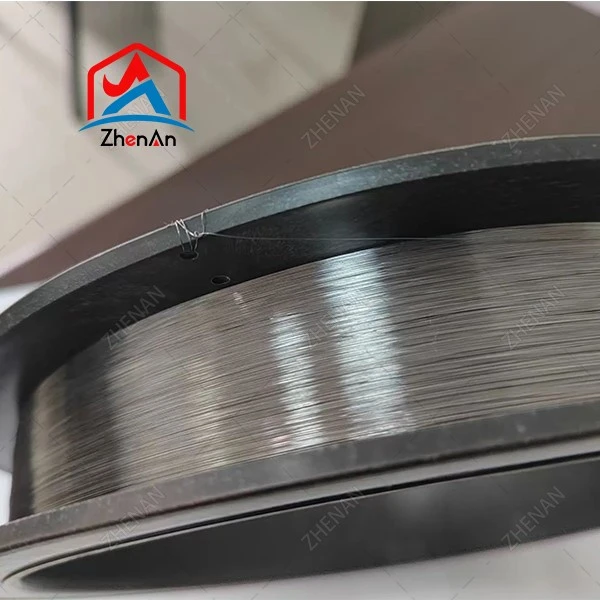

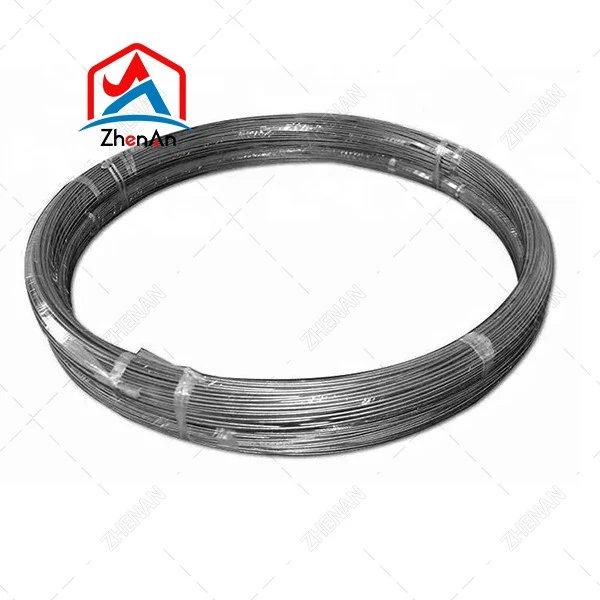

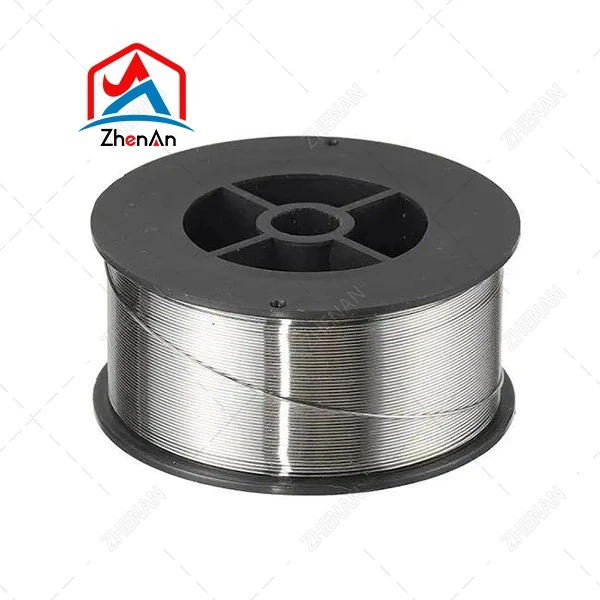

Capacitor Grade Tantalum Wire: Anode Lead Functions and Uses

The Anode Lead as a Distinct Application

Almost all capacitor grade tantalum wire produced today ends up in one place: as the anode lead of a tantalum capacitor. That single sentence hides the reason the product exists as a separate specification. The wire is embedded in a pressed powder body, sintered with it, anodised with it, and then handled by assembly equipment that grips, bends and welds the free end. It is at once an electrical conductor, a mechanical anchor and a process surface, and each of those roles imposes a different requirement on the same 0.2 to 1.0 mm strand.

Understanding the uses of the wire therefore means understanding what the lead must do in each capacitor family. A moulded chip part, a radial dipped part, a hermetically sealed wet part and a polymer part all use tantalum wire, yet the dominant failure mode differs in each, and so does the property that should be written on the purchase order.

What the Lead Does Inside a Sintered Anode

A tantalum anode is a porous slug pressed from agglomerated powder and sintered in vacuum at 1300 to 1700 C. One or two wire risers are inserted into the powder before pressing, or welded to the slug afterwards, so that a substantial length of wire sits inside the compact and a free length projects. During sintering, necks form between powder particles and between the particles and the embedded wire. The joint is not a braze or a weld in the metallurgical sense; it is a diffusion bond whose strength depends on contact area, surface cleanliness and the amount of interdiffusion achieved in the sintering window.

That is why embedding depth is a controlled process parameter rather than a handling detail. Too shallow and the bond area is small, giving low pull strength and a high-resistance constriction; too deep and the wire occupies volume that would otherwise carry capacitance, reducing CV per unit volume, and can interfere with the formation of a uniform oxide on the inner surfaces. Typical designs embed one to three diameters of wire, and the pull strength of the finished anode, measured on a tensile tester at a defined rate, is the acceptance criterion that ties wire quality to anode quality.

The free length carries current to the termination. Because the anode body is porous and its effective conductivity is far below that of solid metal, the wire is the lowest-resistance path in the component, and its diameter sets the series resistance contribution in low-ESR designs. The lead is also the thermal path: during reflow the wire conducts heat into the anode, and during welding it conducts heat away from the nugget.

Moulded Chip Capacitors: Small Diameter, Fast Welding

The largest single use is the moulded chip capacitor, where a 0.20 to 0.40 mm tantalum wire is welded to a lead frame, the assembly is encapsulated in epoxy, and the part is soldered by reflow. Here the dominant requirements are diameter consistency for the welder, straightness for the feed track, and a temper that produces a consistent nugget in a weld measured in milliseconds. A 0.25 mm wire with 0.008 mm diameter scatter will weld acceptably on one spool and reject on the next, because the weld energy is set for a nominal section.

The second requirement is survival of reflow. Peak board temperature of 260 C for 10 seconds is modest for tantalum, but the moulding compound and the anode expand differently from the wire, and the lead is the constrained path between them. A lead with coarse recrystallised grains and elevated oxygen cracks at the exit point from the body, a failure that appears as an open circuit after the second reflow rather than at first test. Bend testing of the finished part, typically to a defined radius through 90 degrees and back, is the standard screen for this mode.

Miniaturisation pushes the wire in two directions at once. Smaller case sizes want thinner wire to save volume, while higher rated current and lower ESR want thicker wire. The compromise is usually found at 0.25 to 0.30 mm for general-purpose parts and 0.35 to 0.40 mm for low-ESR and high-temperature grades.

Radial Leaded and Dipped Capacitors: Bend Fatigue Dominates

Radial dipped capacitors use 0.40 to 0.60 mm wire, and here the lead is formed, cut and bent into a lead pitch before the part is inserted or taped. The application requirement shifts from weld consistency to fatigue resistance: the wire is bent through a right angle at a defined radius, sometimes twice, and the formed leg then carries the insertion force. Coarse-grained, oxygen-contaminated wire fails at the bend with the characteristic orange-peel surface and a crack that starts on the tension side.

Forming tools must be matched to the temper. Annealed wire in this size range bends cleanly at a radius of about one and a half diameters; stress-relieved wire needs a larger radius or a pre-anneal. Buyers who specify only diameter and grade, then discover the bend radius problem at the assembly line, typically face a choice between retooling and re-specifying the wire, and retooling is usually the slower path.

Hermetically Sealed Wet Capacitors: The Lead as a Structural Element

Wet tantalum capacitors, used where very high CV and long life are needed in a sealed package, use 0.50 to 1.00 mm wire that passes through a glass-to-metal seal or a welded header. In this family the lead is not merely an electrical connection; it is a structural member that must hold the anode assembly against shock and vibration, maintain the seal, and resist corrosion by the electrolyte for years at rated temperature.

Three properties become critical. Thermal expansion must suit the seal glass so that the seal does not craze on thermal cycling. Surface finish and freedom from longitudinal defects matter because a scratch that crosses the seal region becomes a leak path. And the wire must be fully dense and free of internal porosity, since a centreline defect in a 0.8 mm wire is a corrosion channel through the whole assembly. Requirements of this kind are normally written as ultrasonic inspection plus a helium leak test on the finished component rather than as a wire-only property.

Because these parts often serve in aerospace, industrial and medical equipment, the acceptance regime is also heavier: lot traceability to the ingot, retention samples, and qualification of any change in wire source or drawing route before shipment.

Polymer and Hybrid Tantalum Capacitors

Polymer tantalum capacitors replace the manganese dioxide counter electrode with a conductive polymer, which lowers ESR by an order of magnitude and removes the ignition failure mode associated with manganese dioxide. The tantalum wire is unchanged in principle, but its relative contribution to ESR rises sharply once the counter electrode is no longer the limiting element. In a low-ESR polymer part, lead diameter and lead length become design variables that a buyer can no longer treat as fixed by the case size.

Polymer parts also see higher inrush currents and tighter voltage derating, so the lead-to-anode joint is stressed thermally during reflow and electrically in service. The consequence for wire selection is a preference for the doped grade at the upper end of the sintering window, because the finer, pinned grain structure retains strength at the joint after a hot reflow profile.

Capacitor family	Typical wire diameter	Dominant requirement	Characteristic failure mode
Moulded chip, general purpose	0.20 to 0.30 mm	Diameter consistency, weldability	Open circuit after reflow at lead exit
Moulded chip, low ESR	0.30 to 0.40 mm	Lead resistance, joint strength	High ESR, lead pull-out
Radial dipped	0.40 to 0.60 mm	Bend fatigue after forming	Crack at bend radius
Hermetic wet	0.50 to 1.00 mm	Seal integrity, density, expansion	Leak at glass seal, corrosion channel
Polymer and hybrid	0.30 to 0.50 mm	ESR contribution, thermal survival	Joint weakening after reflow
High-reliability and space	0.30 to 0.60 mm	Traceability, lot uniformity	Scatter between lots, not within a lot

High-Reliability and Medical Applications

In implantable medical devices, aerospace payloads and down-hole equipment, the same wire is bought under a far stricter regime. The physical part is identical; what changes is the evidence trail. Each coil must be traceable to an ingot and to a sintering qualification run, interstitial chemistry must be reported per coil rather than per lot, and any change of drawing route, die, anneal furnace or dopant source requires re-qualification on the finished component.

These users also care about lot uniformity more than about best-case properties. A supplier whose median pull strength is high but whose spread is wide is worse than a supplier whose median is modest and whose spread is narrow, because the assembly process and the reliability prediction are both built around the tail. Requests for capability data on diameter, tensile and grain size are normal in this segment and should be answered with measured distributions, not with specification limits.

In medical implantables, the additional constraint is biocompatibility of the finished device rather than of the wire, but the tantalum surface still matters: residue from drawing lubricants that survives cleaning is a leachable species, and the cleaning validation therefore reaches back into the wire supply chain.

Beyond the Anode: Other Uses of the Same Wire

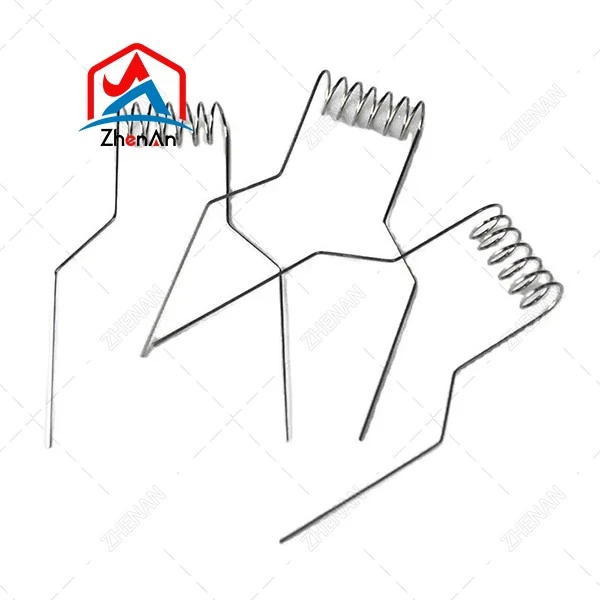

A minority of capacitor grade tantalum wire is used outside capacitors, and the fact that it is the same product is often overlooked in purchasing. The metal's corrosion resistance in strong acids, its high melting point and its gettering behaviour make small-diameter tantalum wire useful for filament and heating-element supports in vacuum equipment, for getter supports in sealed devices, for corrosion-resistant probes and thermowell components in chemical analysis instruments, and for laboratory ware where platinum is too soft or too costly.

These applications accept a wider interstitial envelope but demand other things: uniform diameter over long lengths for coiling, freedom from kinks, and consistent resistance per unit length where the wire is used as a heating element. A capacitor wire certificate does not automatically satisfy them, and a wire selected for getter supports should not be assumed to meet capacitor leakage requirements.

Translating the Use into an Order Line

The practical conclusion is that the application, not the material name, should drive the specification. Start from the capacitor family, then state the diameter and tolerance band that the assembly equipment can tolerate, the temper that the forming and welding steps require, the grain size and oxygen limit that the sintering schedule allows, and the inspection evidence the end user demands.

A workable order line for a radial dipped part therefore reads: tantalum wire, Ta1 or doped grade, annealed, 0.50 mm plus or minus 0.005 mm, camber 0.5 mm maximum over 300 mm, oxygen 150 ppm maximum, grain size 20 to 60 micrometres, tensile 250 to 400 MPa with elongation 25 percent minimum, on spools with layer-wound traverse, each coil certified and a retention length held. Every clause in that line corresponds to a specific failure mode observed in production, which is the only justification a specification needs.

Finally, the qualification should be done on the finished component, not on the wire. Pull strength after sintering, bend life after forming, leakage after anodising and ESR after encapsulation are the numbers that decide whether the wire was right, and they can only be produced by running the actual process with the actual heat. Wire data predicts; component data decides.

FAQ

Q: What is the main use of capacitor grade tantalum wire?
It is used as the anode lead, or riser, of tantalum capacitors: the wire is embedded in the pressed tantalum powder body, sintered with it, and carries the anode current out to the termination after anodising and counter-electrode formation.

Q: Why is the wire sintered into the anode instead of welded afterwards?
Sintering creates a diffusion bond over the full embedded length, which gives a larger bond area and lower contact resistance than a spot weld. It also removes a separate process step, since the anode has to be sintered anyway.

Q: Which wire diameter suits a low-ESR polymer tantalum capacitor?
Typically 0.30 to 0.50 mm. Once the conductive polymer has removed most of the counter-electrode resistance, the lead becomes a visible part of the ESR budget, so diameter and free length have to be treated as design variables.

Q: Does tantalum wire also serve non-capacitor applications?
Yes. Small-diameter tantalum wire is used for filament and heating-element supports in vacuum equipment, getter supports in sealed devices, corrosion-resistant probes in analytical instruments and some laboratory ware, but those uses accept wider interstitial limits and different acceptance tests.

Q: How does a wet tantalum capacitor use the wire differently from a chip part?
In a wet part the wire passes through a glass-to-metal seal and acts as a structural member, so seal-compatible thermal expansion, full density and freedom from longitudinal surface defects matter as much as electrical conductivity.

Q: What should be measured to confirm the wire suits the application?
Pull strength of the sintered anode, bend life of the formed lead, leakage current after anodising and ESR after encapsulation. These component-level results, run with the actual heat and process, decide acceptance far better than wire certificate values alone.
