Capacitor Tantalum Wire Grades: Ta1 Chemistry and Traits

What "Capacitor Grade" Means in Tantalum Wire

In a tantalum capacitor the wire is not a current lead in the ordinary sense. It is the riser that is sintered into a porous anode body whose pressed density is typically 5.0 to 8.0 g/cm3, against 16.6 g/cm3 for solid tantalum, so the whole anode current leaves the component through one or two strands of wire 0.20 to 1.00 mm in diameter. That geometry explains why the product is bought against a narrower envelope than ordinary wrought tantalum: chemical cleanliness must be good enough not to poison the anodic oxide, the grain structure must survive 1300 to 1600 C in vacuum without losing straightness, and the diameter must hold tight enough for automatic welding, moulding and taping stations.

The interface between wire and powder compact is where most field failures begin. During sintering the wire and the surrounding powder interdiffuse; a contaminated or oxygen-rich wire surface turns that joint into a chain of brittle boundaries, and the lead pulls out under reflow shock or vibration. A wire that is too heavily cold worked recrystallises abruptly in the same thermal cycle, bows, and jams the feed track. A wire that is too soft deforms at the weld electrode and produces a weak nugget. Capacitor grade wire is therefore defined by a combination of purity, temper and dimensional control rather than by a single headline number.

Standard Framework and Grade Designations

Two document families govern the product. GB/T 3463 is the Chinese specification for tantalum wire and is the reference under which the classic Ta1 and Ta2 designations are written. ASTM B365 covers tantalum and tantalum alloy rod and wire, ASTM B364 covers the ingot from which the wire is drawn, and ASTM B708 covers plate, sheet and strip; quoting the ingot standard alongside the wire standard lets a buyer trace interstitial chemistry back to a single heat. Where a drawing uses the unified numbering system, unalloyed tantalum is called out as UNS R05200, which sits in the same purity family as Ta1.

Designation alone is not a purchase specification. A workable order line reads: standard, grade, temper, diameter, diameter tolerance, straightness, surface condition and delivery form, in that sequence. "Tantalum wire 0.5 mm" leaves the oxygen and carbon limits, the anneal state and the coil format undefined, and three compliant-looking offers can then differ by a factor of two in bend life at the weld station.

The second design decision is doped versus undoped. Undoped Ta1 wire carries no deliberate grain-refining addition. It offers the highest chemical purity and a coarse grain, and it is the right choice when the powder it will be sintered into is itself low in oxygen and nitrogen and the anode sintering temperature can be held below about 1700 C. Doped capacitor wire carries controlled trace additions that pin grain growth and raise resistance to oxygen embrittlement; it tolerates higher sintering temperature and coarser, higher-oxygen powders, at the cost of a slightly more complex specification and tighter process windows at the wire mill.

Chemical Composition Envelope

The table below consolidates the limits normally written on a capacitor wire certificate. Individual heats are released against the grade table of GB/T 3463 or ASTM B365, and the purchase order governs where the two documents differ; the values are maximums in weight percent except where a range is shown.

Element	Ta1 type (UNS R05200)	Ta2 type	Doped capacitor wire
Ta, min	99.95	99.90	99.90 balance
Oxygen	0.015	0.020	0.010 to 0.020, aimed
Nitrogen	0.010	0.015	0.010
Hydrogen	0.0015	0.0020	0.0015
Carbon	0.010	0.015	0.008
Iron	0.010	0.020	0.010
Nickel	0.005	0.010	0.005
Silicon	0.005	0.010	0.005 plus controlled dopant
Tungsten	0.01	0.02	0.01
Other metallics, each	0.005	0.010	0.005

Oxygen is the number that decides yield, not the tantalum assay. Every 100 ppm of oxygen picked up between drawing and sintering raises the ductile-to-brittle transition temperature of the wire, and a lead that survives a 260 C reflow in the lab can crack at the bend radius during board-level handling. Carbon matters for a different reason: carbon retained in the wire reacts with the oxide film during anodising and shows up as elevated leakage and a rising dissipation factor after life test. Hydrogen is a processing residue and must be driven off by vacuum annealing to well under 20 ppm, otherwise the wire delivers delayed cracking weeks after assembly.

Physical and Mechanical Characteristics

Tantalum's combination of density, melting point and dielectric behaviour is the reason the metal dominates a whole capacitor family. The metal itself is not the dielectric; the anodic oxide Ta2O5 formed on the sintered body is, with a relative permittivity near 27 and a growth rate of roughly 1.6 nm per formed volt, which is what allows a rated 16 V part to be built with an oxide a few tens of nanometres thick.

Property	Value	Consequence for the wire
Density	16.6 g/cm3	High mass per unit length; coil weight and sag behaviour
Melting point	2996 C	Survives sintering with wide margin; no sag at 1600 C
Electrical resistivity, 20 C	about 13.5 micro-ohm cm	Lead resistance contributes to ESR in low-ESR parts
Thermal expansion	about 6.5 micro-m/m K	Close match to sintered anode; low seal stress
Young's modulus	about 186 GPa	Stiff lead; bend radius must be generous
Thermal conductivity	about 57 W/m K	Heat drawn away from weld nugget
Anodic oxide permittivity	about 27	Basis of volumetric efficiency

Mechanically, the tempering state is quoted together with diameter. Annealed wire in the 0.20 to 0.50 mm range is normally supplied at 250 to 400 MPa tensile with 25 percent elongation or better, and a recrystallised grain size in the 20 to 60 micrometre band. Stress-relieved wire in the 0.50 to 0.80 mm range runs 400 to 600 MPa with elongation above 12 percent and a largely fibrous structure. Heavier sizes for sealed wet capacitors can be supplied hard drawn above 700 MPa where the lead is mechanically clamped rather than welded. Quoting a tensile figure without the temper and diameter is meaningless, because the same heat can be delivered anywhere across that range.

Grain Structure, Oxygen Embrittlement and Sintering Compatibility

Undoped tantalum wire has coarse grains, often several grains across the diameter at 0.3 mm. Coarse grains mean few boundaries to blunt a propagating crack, so the wire is less tolerant of oxygen. At sintering temperature, oxygen from the powder, from residual lubricants and from the furnace atmosphere diffuses into the wire; above roughly 300 to 500 ppm local oxygen the grain boundaries in the affected zone are saturated and the lead becomes brittle exactly where the mechanical load concentrates. This is why the undoped grade is paired with low-oxygen, low-nitrogen powder and a sintering temperature held below about 1700 C, with the soak kept as short as the target CV per gram allows.

Doped wire works the other way round. Trace additions form fine dispersoids and second-phase particles that pin boundary migration, so the recrystallised structure stays fine and the oxygen that does enter is distributed rather than segregated. The practical payoff is a wider sintering window: 1500 to 1700 C with longer holds, higher-oxygen powder, and a lower rate of lead pull-out in pull tests after sintering. The trade-off is that doped wire is less forgiving on the drawing side, and its surface finish and dopant distribution must be controlled heat to heat, so certificates should show dopant range and grain size rather than only the metallic impurities.

A third compatibility point is thermal expansion mismatch against the sintered neck structure. Tantalum wire and tantalum powder share the same base metal, so the mismatch is small, but a wire that has recrystallised to a very coarse grain while the compact is still shrinking will be strained by the differential densification. Specification practice is therefore to fix both the wire grain size and the sintering schedule, then qualify the pair by a pull test on the finished anode, not by wire properties alone.

Diameter Tolerance, Straightness and Surface Quality

Capacitor wire is drawn to tolerances far tighter than general wrought product. Below 0.50 mm, a diameter tolerance of plus or minus 0.005 mm is routine and plus or minus 0.003 mm is available for automatic welding lines; above 0.50 mm, plus or minus 0.01 mm is typical. Ovality should be held within half the diameter tolerance, because an oval wire welds with variable contact area and produces inconsistent nuggets. Straightness is specified as maximum camber over a fixed chord, commonly 0.5 mm per 300 mm for coil stock fed from a spool.

Surface condition covers more than roughness. The wire must be free of drawing lines, die marks, lubrication residue, oxide discolouration and embedded particles; a longitudinal scratch deeper than about 5 percent of the diameter acts as a stress raiser and as an oxygen path during sintering. Cleanliness is verified by solvent extraction or by residue analysis on a wiped length, and the allowed residue is usually stated in milligrams per square metre rather than as a visual rating. Coil format matters too: spool bore, traverse winding, layer separation and the absence of crossovers determine whether the wire pays out without tension spikes on a high-speed welder.

How the Wire Is Made, and Why Temper Is the Hidden Variable

The route starts with electron-beam melted or vacuum-arc melted ingot, is broken down by forging and rolling to a rod, then reduced by rotary swaging and finally by drawing through diamond dies with intermediate vacuum annealing. Each annealing step controls both the interstitial pickup and the recrystallisation texture. A mill that anneals in a clean vacuum holds oxygen stable; a mill that anneals in a poor vacuum adds 50 to 150 ppm oxygen per pass, which is invisible on a certificate issued at the rod stage and decisive at the weld station.

Final temper is set by the last anneal and the last draft. Because the wire is sold by diameter and grade rather than by temper on many order forms, the reduction schedule is where suppliers quietly diverge. A buyer who specifies tensile range, elongation and grain size, and asks for those three values on the actual coil rather than on a generic certificate, closes that gap. Where the wire will be welded to a nickel or copper-clad lead frame, the temper also has to match the weld schedule: too hard and the electrode skids, too soft and the wire upsets and necks.

Selection, Acceptance and Handling

Selection follows the anode, not the catalogue. For a moulded chip capacitor with a 0.20 to 0.40 mm lead, the priorities are diameter consistency, straightness and a temper that welds cleanly to the frame in a few milliseconds. For a radial dipped part with a 0.40 to 0.60 mm lead, bend fatigue after forming becomes the limiting property. For a hermetically sealed wet capacitor with a 0.50 to 1.00 mm lead, the lead is a structural element passing through a glass-to-metal seal, and thermal expansion, surface finish and freedom from longitudinal defects dominate.

Acceptance testing on receipt should cover diameter and ovality on a sample per coil, tensile and elongation, grain size on a polished longitudinal section, oxygen, nitrogen, hydrogen and carbon by inert gas fusion and combustion, and a weld or pull qualification on the actual production schedule. Visual and dimensional checks catch most shipment-level problems; interstitial chemistry catches the problems that only appear after sintering. Retain a length from every coil until the finished lot has passed its electrical test, so that a leakage or pull-out trend can be traced back to a specific heat.

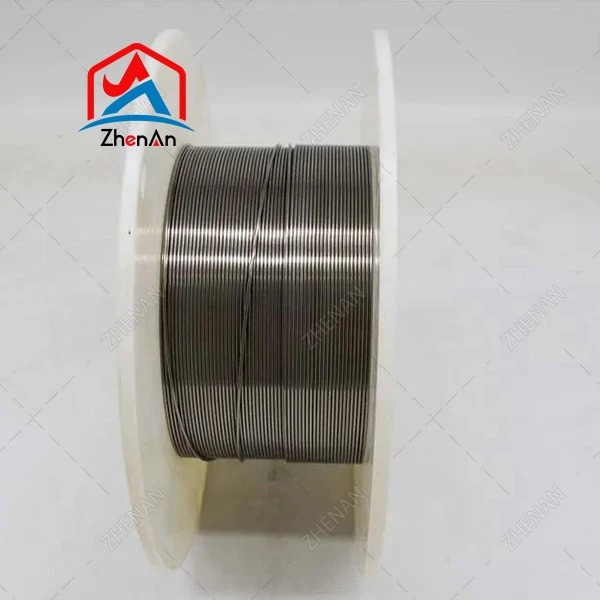

Storage is simple but not optional. Tantalum does not rust, yet the wire picks up oxygen and moisture-borne contamination from humid air, and a spool left open in a workshop for a month can arrive at the welder with a surface layer that behaves differently from the certificate. Keep coils in the sealed foil bag with desiccant, open them only at the point of use, and do not handle the wire with bare hands where the lead will be sintered; fingerprints are a measurable carbon source after pyrolysis.

FAQ

Q: What is the difference between Ta1 and Ta2 tantalum wire?
Ta1 is the higher-purity designation, typically 99.95 percent tantalum minimum with oxygen held to about 0.015 percent, while Ta2 permits roughly 99.90 percent tantalum and about 0.020 percent oxygen. Ta1 is used where leakage and long-term stability matter most; Ta2 is chosen where the sintering schedule is mild and cost matters more.

Q: Which diameter is used for the anode lead of a chip tantalum capacitor?
Moulded chip capacitors normally use 0.20 to 0.40 mm wire, radial dipped types 0.40 to 0.60 mm, and hermetically sealed wet capacitors 0.50 to 1.00 mm. The diameter is set by the rated current, the weld schedule and the mechanical load on the lead, not by the case size alone.

Q: Why does undoped tantalum wire become brittle after sintering?
Oxygen diffusing in from the powder and the furnace atmosphere saturates the grain boundaries of a coarse-grained structure, and the affected zone cracks where the lead is loaded. Keeping powder oxygen and nitrogen low, holding sintering below about 1700 C and shortening the soak are the standard countermeasures.

Q: Does a higher tantalum assay guarantee better capacitor performance?
No. A 99.95 percent assay with 250 ppm oxygen performs worse than a 99.90 percent assay with 80 ppm oxygen and controlled carbon. Interstitial levels and grain structure predict leakage and lead reliability far better than the metallic purity headline.

Q: How is straightness specified for capacitor tantalum wire?
As maximum camber over a fixed chord, commonly 0.5 mm over 300 mm of coil stock, measured on wire paid out under a defined low tension. Camber beyond that value causes feed jams and misalignment at the weld station even when the diameter is perfectly in tolerance.

Q: Can the same tantalum wire be used for both doped and undoped sintering processes?
Not normally. The two grades are qualified against different sintering temperatures and powder oxygen levels, and substituting one for the other changes the pull strength and leakage distribution of the finished anode. Any substitution should be re-qualified on the finished component, not on wire properties.
