Ferromolybdenum as an Alloying Carrier in Industrial Supply Chains

Ferromolybdenum is a master alloy in which molybdenum is diluted in an iron matrix so that it can be charged into a steel melt without the violent oxidation losses that accompany pure molybdenum additions. Commercial material sits in the 55-70% Mo range, with the balance essentially iron plus controlled residuals of silicon, carbon, sulphur, phosphorus and copper. Because molybdenum has a melting point of roughly 2623 C while the eutectic in the Fe-Mo system is far lower, the alloy melts well below the temperature at which molybdenum metal would dissolve, which is the practical reason the ferroalloy form exists at all.

For a buyer, the alloy matters less as a commodity and more as a delivery route for a precisely controlled molybdenum addition. A 10-tonne heat of low-alloy pressure-vessel steel might require 1.5 tonnes of FeMo60 to reach a 0.5% Mo specification; the recovery of molybdenum from the ferroalloy is normally assumed at 95-98% in electric furnace practice and slightly lower in converter steelmaking, and that recovery figure drives both the charge calculation and the commercial tolerance on the alloy analysis. The applications described below follow from one metallurgical function: molybdenum in solid solution raises the temperature at which steel softens, and molybdenum in carbides controls the size and stability of the precipitate population.

Why Molybdenum Is Added Through a Ferroalloy Rather Than the Oxide

The oxide route is technically possible, and molybdenum trioxide briquettes are used in some induction melting shops, but the oxygen introduced with MoO3 must be removed by carbon or silicon, which adds to the deoxidation burden and generates slag volume. Ferromolybdenum arrives in a metallic state with low oxygen, dissolves cleanly under a slag cover and leaves a predictable residual. The same logic applies to nickel-molybdenum and chromium-molybdenum master alloys, where two alloying elements are delivered in one addition.

The specification levers that matter in practice are the molybdenum range, the carbon level and the sulphur and phosphorus ceilings. FeMo with 0.10-0.15% C is normally acceptable for structural and pressure-vessel grades; ultra-low-carbon steels and certain stainless heats require the low-carbon variants where carbon is held to 0.05% or below, and the price step between those variants is significant enough that the grade should be written into the purchase order rather than left to the mill default. Lump size is the second lever: 10-50 mm or 10-100 mm lumps suit electric furnace charging, while 3-10 mm material is used for ladle or wire-fed additions where dissolution time must be short.

Commercial Grades and Typical Specification Windows

The table below shows the analysis bands that are commonly traded and inspected. Exact limits are fixed by the applicable standard, typically GB/T 3649 for ferromolybdenum in Chinese-origin trade, and by the mill certificate issued against the order. Where a heat is destined for a pressure-retaining component, the steelmaker usually imposes a tighter internal band than the standard requires so that the residual after recovery never falls outside the finished-steel specification.

Grade	Mo content	C max	Si max	S max	P max	Typical use
FeMo60-A	60.0-65.0%	0.10%	1.0%	0.10%	0.04%	Pressure-vessel and creep-resistant steels
FeMo60-B	60.0-65.0%	0.15%	1.5%	0.15%	0.05%	Structural and HSLA steelmaking
FeMo60-C	55.0-65.0%	0.20%	1.5%	0.20%	0.06%	Iron castings, general alloying
FeMo55	55.0-60.0%	0.15%	1.5%	0.15%	0.05%	Cost-driven alloying where Mo recovery is high
FeMo70	65.0-75.0%	0.15%	1.0%	0.10%	0.04%	Tool steels, superalloy melting, low-charge-weight heats

Copper is the residual that is most often overlooked. FeMo produced from certain secondary raw materials can carry 0.5% Cu or more, and in steels where copper is already near the limit, that contribution can push the heat out of specification. Aluminium is a second residual worth specifying, particularly for continuous-cast grades where alumina inclusions affect nozzle blockage. Both should be stated as maxima on the certificate rather than assumed from the grade designation.

Metallurgical Effects That Drive the Applications

Molybdenum has a limited solubility for carbon in the austenite range and a strong tendency to form complex carbides of the M23C6, M6C and M2C types. In low-alloy steels this raises the tempering resistance: a 0.5% Mo addition allows a quenched and tempered component to hold its hardness through a tempering treatment that would soften a plain carbon steel by 50-80 HV. That single property underpins the use of molybdenum-bearing plate in pressure vessels, where post-weld heat treatment at 600-650 C is mandatory and the base metal must not soften below the design minimum tensile strength.

In the 0.9-2.25% Cr range with 0.45-1.0% Mo, the same mechanism produces the creep-resistant steels used for steam piping and reactor shells, typically supplied under GB/T 713 or ASME BPVC Section II Part A, for example the 2.25Cr-1Mo grade SA387 Gr.22 Cl.2. Molybdenum also improves hardenability roughly in proportion to its content and, unlike manganese, does so without a strong segregation penalty, which is why it appears in heavy-section forgings and thick-wall plate.

In stainless and corrosion-resistant grades, molybdenum is added as an alloying element in the steel rather than through FeMo alone, but the same metallurgical logic applies: 2.0-3.0% Mo in the 316L family raises resistance to chlorides and to reducing acids, and 9% Mo in alloy 625 (UNS N06625) delivers pitting resistance in marine and chemical service. In these melts FeMo is charged together with nickel and chromium units, and the order of addition determines how much molybdenum is lost to slag.

Grain-boundary effects are the fourth mechanism. Small molybdenum additions reduce temper embrittlement in Cr-Mo steels by limiting the segregation of phosphorus and tin to prior austenite grain boundaries, which is why the J-factor and X-bar calculations used in hydrogen-service vessel specifications are tied directly to residual control rather than to molybdenum content alone.

Application Map by Consuming Industry

Industry	Typical product	Mo level in the finished material	Function of the molybdenum
Pressure vessels	Plate to GB/T 713, SA387 Gr.11/12/22	0.45-1.10%	Creep strength, temper resistance, hydrogen resistance
Oil and gas transmission	Line pipe to API Spec 5L, X65-X70	0.10-0.35%	Toughness at low temperature, sour-service resistance
Power generation	Boiler tube, header, turbine casing	0.50-1.00%	Creep rupture life at 540-580 C
Tool and die	H13-type hot work steel, 1.2344 equivalent	1.20-1.75%	Hot hardness, thermal fatigue resistance
Stainless steel	316L, 316Ti, duplex grades	2.00-3.00%	Pitting and crevice corrosion resistance
Cast iron	High-strength and heat-resistant castings	0.30-1.00%	Section stability, elevated-temperature strength
Superalloys	Alloy 625 (UNS N06625), alloy 718 type chemistries	2.80-10.0%	High-temperature strength and corrosion resistance

Each of these segments imposes a different acceptance regime. Line pipe steel is judged on charpy impact energy and on sulphur control for sour service; pressure-vessel plate is judged on elevated-temperature tensile and creep data plus simulated post-weld heat treatment; tool steel is judged on hardness traverse and carbide banding. The FeMo specification is therefore never chosen in isolation, it is chosen backwards from the finished-part test.

Chemical, Catalytic and Metallurgical Uses Outside Steelmaking

Molybdenum compounds are produced industrially from technical-grade molybdenum oxide rather than from FeMo, but ferromolybdenum does feed a smaller group of chemical routes where an iron-molybdenum source is acceptable or where the alloy is used as a melting stock. The commercially important compounds are molybdenum trioxide, ammonium heptamolybdate, sodium molybdate and molybdenum disulphide. These in turn serve as hydrodesulphurisation catalyst precursors, corrosion inhibitors for cooling water, pigment raw materials for corrosion-resistant primers, and solid lubricants for extreme-pressure service.

In catalysis, the active phase is molybdenum sulphide supported on alumina, promoted with cobalt or nickel. The molybdenum loading is typically 8-14% as MoO3, and the performance is governed by the dispersion of the active phase, not by the purity of the ferroalloy feedstock, which is one reason catalyst manufacturers qualify raw material through a full trace-metal screen including alkali and vanadium. Vanadium and tungsten are the two impurities that most affect selectivity, and both are controlled to low ppm levels in catalyst-grade oxide.

Ferromolybdenum also appears as a melting stock for molybdenum-containing cast irons and for certain welding consumable cores. In hardfacing and in wear-resistant cast irons, molybdenum at 0.5-3.0% refines the carbide morphology and improves resistance to abrasion at elevated temperature. In consumable manufacture, the molybdenum unit is more often introduced as pure metal powder or as a pre-alloyed powder because the chemistry tolerance on weld metal is tighter than on cast steel.

Energy, Oil and Gas Equipment

The extraction and refining sector consumes molybdenum in two distinct ways. The first is structural: wellheads, Christmas trees, valves and subsea manifolds are built from low-alloy and stainless steels in which molybdenum provides resistance to chlorides, CO2 and wet H2S. Sour-service specifications commonly invoke NACE MR0175 / ISO 15156, which limits hardness and requires the material to be qualified for the specific partial pressure of H2S, and molybdenum-bearing Cr-Mo and duplex grades are selected precisely because they can meet the hardness ceiling after heat treatment.

The second is catalytic: hydrotreating and hydrocracking reactors operate at 350-450 C and 100-200 bar hydrogen partial pressure, and their shells are made from 2.25Cr-1Mo or 2.25Cr-1Mo-0.25V plate with austenitic stainless weld overlay. The vanadium-modified grade achieves higher allowable stress at temperature by forming a fine dispersion of vanadium-rich carbides, but it demands tight control of the J-factor and of the cooling rate after quenching. Molybdenum's contribution here is the base creep resistance on which the vanadium addition builds.

In refining furnaces and reformer tubes, the Fe-Ni-Cr heat-resistant castings carry molybdenum at 0.5% or lower; higher molybdenum contents can reduce oxidation resistance in some of those alloys, which is a reminder that molybdenum is a beneficial addition only inside a defined window. Over-alloying raises cost and can degrade ductility or weldability without improving the property the design actually needs.

Turbine, Aerospace and High-Temperature Components

Gas turbine and steam turbine components use molybdenum through superalloys rather than through FeMo directly, but the master alloy is part of the melting route for many of those grades. Nickel-base alloys such as alloy 625 (UNS N06625, 9% Mo) and the 718 family (2.8-3.3% Mo) are vacuum-melted, and the molybdenum charge must be low in oxygen and in volatile tramp elements because vacuum induction melting cannot remove them.

For turbine casings, valve bodies and steam chests, cast Cr-Mo and Cr-Mo-V steels at 0.5-1.25% Mo are standard. These castings are heavy-section, so hardenability and temper resistance decide whether the mechanical properties are uniform through the wall. The purchasing specification typically requires a simulated post-weld heat treatment on test coupons, with tensile and impact testing after the simulation rather than in the as-heat-treated condition.

Aerospace structural parts use molybdenum in maraging and high-strength low-alloy grades, and in the Mo-bearing titanium alloys used for airframe components. In those melts the ferroalloy is replaced by pure molybdenum or by an aluminium-molybdenum master alloy, since iron is an impurity in titanium. Recognising which melting route a grade requires is part of reading an enquiry correctly: not every molybdenum-bearing material is a ferromolybdenum application.

Procurement Essentials and Verification

Three checks separate a smooth delivery from a claim. First, confirm the analytical basis: whether the molybdenum figure is a minimum, a range, or a typical value, and whether it is determined by wet chemistry or by X-ray fluorescence. XRF is fast but its accuracy on lumpy ferroalloys depends on sample preparation, so a certificate quoting a single XRF number without a stated sampling procedure deserves a question. Second, confirm the sizing distribution and the percentage of fines; a nominal 10-100 mm lot that arrives with 20% below 10 mm changes the recovery in a small induction furnace. Third, confirm the moisture and packing condition, since FeMo is shipped in steel drums or big bags and a wet cargo can introduce hydrogen and oxygen into the melt.

Recovery calculation should be written down before the heat is charged: required residual multiplied by heat weight, divided by the alloy molybdenum content and by the assumed recovery. In a 30-tonne ladle addition of FeMo60 at 96% recovery, each 1% of required molybdenum consumes roughly 520 kg of alloy, so a 1% error in the assumed alloy analysis moves the charge weight by about 5 kg per tonne of steel, which is the same order as the analysis tolerance itself. That is why buyers negotiate on the contained-molybdenum basis rather than on the gross weight of the alloy.

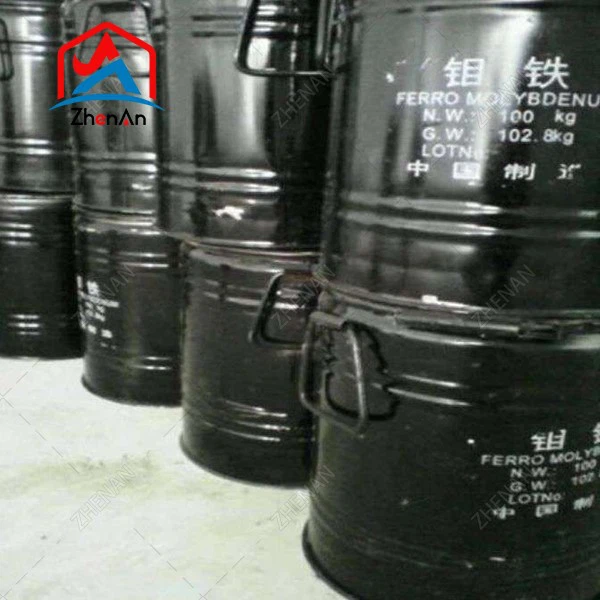

Storage is straightforward but not trivial: keep drums under cover, keep them off concrete floors that draw moisture, and rotate stock on a first-in-first-out basis. Ferromolybdenum does not deteriorate chemically in dry storage, but long exposure to humid air produces surface oxidation and, in drums that have been opened, fines that are dusty and lose material during charging.

FAQ

Q: What molybdenum content should a buyer specify for general steelmaking?
FeMo60 in the 60.0-65.0% Mo range covers most low-alloy and pressure-vessel work, with carbon held at 0.10-0.15% maximum depending on the steel grade being made.

Q: Why does ferromolybdenum recovery vary between furnaces?
Recovery depends on slag basicity, bath temperature, the timing of the addition and the lump size; electric furnace practice typically achieves 95-98% while converter practice is generally lower because of the oxidising atmosphere.

Q: Can molybdenum be added as oxide instead of ferromolybdenum?
Molybdenum trioxide briquettes can be used in induction melting, but they introduce oxygen that must be removed by carbon or silicon, so FeMo remains preferred where residual oxygen and slag volume are controlled.

Q: What is the difference between FeMo60-A and FeMo60-C?
The letter suffix denotes tighter residual control: the A grade restricts carbon, silicon, sulphur and phosphorus more severely than the C grade and is used for pressure-retaining and creep-resistant applications.

Q: Is molybdenum content the only acceptance criterion for ferromolybdenum?
No. Copper, aluminium, sulphur and phosphorus must also be declared, and lump size distribution plus fines content affect both recovery and handling in the melt shop.

Q: Which steel grades most depend on molybdenum for their properties?
The 2.25Cr-1Mo pressure-vessel and piping grades, hot-work tool steels in the H13 family, and 316L-type stainless steels all rely on molybdenum for creep strength, hot hardness or pitting resistance respectively.
