Application Fields of Zirconium Products Across Industry
Leave a message
Zirconium appears in human use long before it appears in engineering drawings. Its rich and varied colours made it a decorative gemstone, and only as understanding of the metal deepened did its industrial applications become the larger part of the story. Today zirconium reaches from ceramic tiles and kitchen knives to chemical reactors and nuclear fuel assemblies, a spread that reflects an unusual combination of corrosion resistance, high-temperature stability and a very low neutron absorption cross-section.
Zirconium: From Gemstone to Industrial Metal
Zirconium is extracted from zircon sand, predominantly zirconium silicate, and converted through zirconium sponge into wrought metal and alloys. The metal is not one product but a family: commercially pure zirconium, zirconium-tin alloys for nuclear service, zirconium-niobium alloys for elevated-temperature and chemical duty, plus the oxide and silicate ceramics that consume the largest tonnage. Because the properties that suit nuclear fuel cladding differ from those that suit a chemical heat exchanger or a ceramic glaze, the application decides which member of the family is specified.
Two characteristics explain most industrial use. Zirconium resists attack by a wide range of acids and alkalis that destroy stainless steels, and it has a very low thermal neutron capture cross-section, which allows it to sit inside a reactor core without poisoning the neutron economy. Those two properties rarely coexist in one material, and they are the reason zirconium occupies niches that no substitute fills comfortably.
Product Forms and Applicable Specifications
Zirconium is supplied in a wide range of mill forms, and each form is covered by its own specification. Matching the form to the correct document is the first step in writing a workable purchase order.
| Product form | Description | Applicable specification | Typical use |
|---|---|---|---|
| Sponge and ingot | Primary reduction product and remelt stock | ASTM B349 for zirconium sponge | Feedstock for wrought products and alloy melting |
| Plate, sheet and strip | Flat rolled product | ASTM B551, GB/T 26314 | Vessel linings, heat exchanger plates, nuclear structural parts |

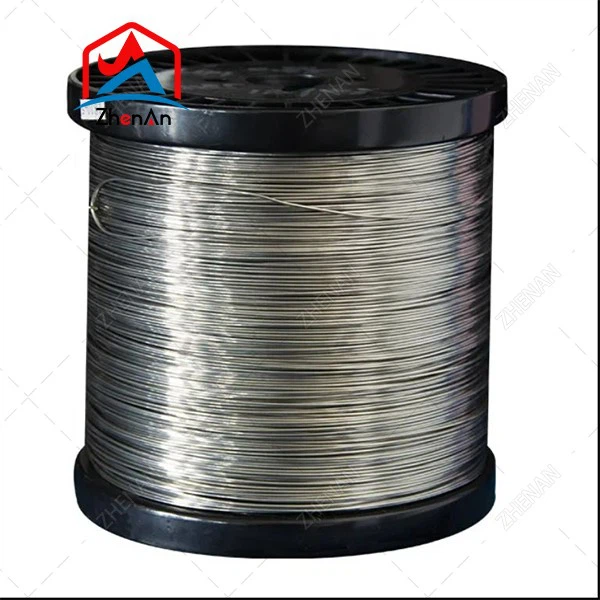

| Bar and wire | Solid long product | ASTM B550 | Fasteners, valve trim, machined components |
| Tube and pipe | Seamless and welded tubular | ASTM B658, ASTM B523 | Heat exchangers, condensers, process piping |
| Powder and ceramics | Zirconia and zirconium silicate | Grade set by the ceramic or refractory application | Refractories, foundry moulds, abrasives, glazes, oxygen sensors |
For chemical duty, commercial grades such as Zr702 and Zr705 are the usual wrought choices, the second offering higher strength through niobium addition. For nuclear service, zirconium-tin and zirconium-niobium alloys are specified because the combination of low neutron absorption and adequate corrosion performance in high-temperature water is essential to the fuel assembly design.
Ceramics, Refractories and Foundry Applications
The largest tonnage does not go into metal at all. Zirconium silicate and zirconia are consumed as refractories, foundry mould materials and ceramic ingredients. Zircon sand is used for foundry moulds and cores because of its high refractoriness and low thermal expansion, and in the refractory lining of glass and steel furnaces where high-temperature chemical attack shortens the life of other materials. Zirconia further serves as an abrasive, as an oxygen sensor element based on its ionic conductivity, and as an opacifier and colourant in ceramic glazes and sanitaryware. In buildings and interiors the same chemistry appears again in tiles, sanitary fixtures and decorative surfaces, which is why zirconium has become indispensable to everyday construction materials.
Chemical Process Equipment and Nuclear Power
In the chemical industry, zirconium equipment is selected for service where stainless steel and nickel alloys fail too quickly: acetic acid and acetic anhydride plants, urea and nitric acid service, hydrogen peroxide production and sulphuric acid handling. Typical components include heat exchangers, condensers, reactors, columns, piping and pump and valve trim. The material is selected not because it is the cheapest option, but because it removes a recurring replacement cost from the maintenance budget.
In nuclear power, zirconium is the structural basis of the fuel assembly. Low neutron capture allows fuel cladding and structural components to remain in the core without consuming the neutron flux that sustains the chain reaction. The performance requirement is demanding: the alloy must retain mechanical strength, resist corrosion in high-temperature pressurised water and remain dimensionally stable over a long service life, which is why nuclear grades are produced under dedicated quality programmes with tightly controlled chemistry.
Medical, Military and Consumer Uses
Zirconium also reaches end users in forms that are seldom labelled as zirconium at all. Zirconia ceramics are widely used in medical and dental restorations, in knife blades and wear parts, and in jewellery where a durable, colour-stable surface is required. In the military field the metal is used in pyrotechnic and incendiary compositions, and zirconium-based materials also appear in protective and structural applications. Consumer uses include decoration and imitation gemstones, where zirconium oxide's optical properties stand in for more expensive stones. What links these otherwise unrelated markets is that each relies on a specific property of the same element: hardness and inertness in the medical and consumer case, and high energy release or thermal stability in the military case.
Frequently Asked Questions
Q: What are the main application fields of zirconium products?
The main fields are ceramics and refractories, foundry materials, chemical process equipment, nuclear power, and medical, military and consumer goods. Ceramics and refractories account for the largest tonnage.
Q: Why is zirconium used in nuclear reactors?
It has a very low thermal neutron capture cross-section, so it can be used for fuel cladding and core structural components without absorbing the neutrons needed to sustain the reaction, while still resisting corrosion in high-temperature water.
Q: Why is zirconium used for chemical equipment instead of stainless steel?
Zirconium withstands many acids and alkalis that attack stainless steels, particularly in acetic acid, urea, nitric acid and hydrogen peroxide service. The higher first cost is offset by a much lower replacement rate.
Q: What is the difference between Zr702 and Zr705?
Zr702 is commercially pure zirconium used for general corrosion-resistant duty, while Zr705 is strengthened by a niobium addition and is chosen where higher mechanical strength is required at the same corrosion performance.
Q: What is zirconia used for?
Zirconia is used in refractories, abrasives, oxygen sensors, ceramic glazes and dental and medical ceramics, exploiting its hardness, thermal stability and ionic conductivity.
Q: Why does zirconium appear in gemstones and ceramics?
Zirconium compounds produce stable colours and high refractive index in decorative stones and glazes, which is why zirconium-based materials appear in jewellery, tiles and sanitaryware as well as in industrial products.
