Silicon Metal Powder: Grades, Particle Size and Quality Control

What Silicon Metal Powder Is and Where It Sits in the Supply Chain

Silicon metal powder is the comminuted form of metallurgical silicon, the same material that is traded as lump silicon metal under the grade system of GB/T 2881. Smelter lump is first crushed to granules of 10-100 mm, then reduced in stages to a controlled particle size distribution: typically 45-500 µm for metallurgical and alloying uses, and 1-20 µm for chemical, refractory and powder-metallurgy uses. The product is not a by-product of ferrosilicon production; it is milled from silicon metal whose impurity ceiling was already fixed at the furnace.

The commercial distinction from ferrosilicon powder is important. Ferrosilicon is an iron-silicon alloy grading 65-75% Si in which iron is an intentional constituent, and it is priced on contained silicon plus iron. Silicon metal powder is priced on silicon assay, impurity ceiling and granulometry, with iron treated as a penalty element rather than an alloying addition. A buyer who substitutes one for the other in a deoxidation or alloying calculation will usually mis-state the silicon unit cost and may exceed the iron specification of the receiving melt.

Powder buyers normally sit one or two process steps downstream of the smelter, supplying aluminium foundries, steel ladle practices, refractory producers, silicone and fumed silica plants, and photovoltaic feedstock chains. Because the material is a commodity in chemistry but a engineered product in granulometry, two lots with identical silicon assay can behave very differently in the same furnace. Iron, aluminium, calcium, carbon and surface oxygen are not distributed evenly across size fractions, and a change of mill or classifier setting is enough to shift the behaviour of a shipment.

Grade Designations and Chemical Composition

Chinese silicon metal is designated by three impurity figures in the order iron, aluminium, calcium, so that grade Si 553 denotes Fe ≤ 0.5%, Al ≤ 0.5% and Ca ≤ 0.3%; grade Si 441 denotes Fe ≤ 0.4%, Al ≤ 0.4% and Ca ≤ 0.1%; Si 3303 denotes 0.3/0.3/0.03; Si 2202 denotes 0.2/0.2/0.02; and Si 1101 denotes 0.1/0.1/0.01. Silicon content is not usually the discriminating figure between these grades, because all of them sit at 98.5-99.5% Si; the discriminating figures are the three impurities, and those are what the customer's process actually reacts to. The table below summarises ceilings that are commonly applied when powder is ordered against a silicon metal grade.

Grade	Si (min, %)	Fe (max, %)	Al (max, %)	Ca (max, %)	Typical use of milled powder
Si 553	98.5	0.50	0.50	0.30	Secondary aluminium alloys, steel deoxidation, refractories
Si 441	99.0	0.40	0.40	0.10	Primary aluminium alloying, general chemical use
Si 3303	99.0	0.30	0.30	0.03	Silicone intermediates, controlled-iron alloys
Si 2202	99.0	0.20	0.20	0.02	Fumed silica, high-purity chemical routes
Si 1101	99.3	0.10	0.10	0.01	Electronic and photovoltaic feedstock routes

Two further figures should be written into a powder specification even though they are not part of the grade name. The first is carbon, which in silicon metal of normal smelting quality is usually held at 0.2% maximum and can be lower on request; carbon matters because it competes with silicon as a reductant in the receiving process and because it reports to the gas phase as CO. The second is oxygen, present as a surface oxide film that rises sharply as particle size falls. A 5 µm powder can carry several tenths of a percent oxygen on its surface, so a specification that states only metallic silicon and ignores oxygen can understate the true silicon available to the melt.

Particle Size, Morphology and Tolerances

Granulometry is where most disputes on silicon powder originate. Three descriptions should be agreed in writing: the sieve fraction, the laser-diffraction distribution, and the allowed percentage outside the window. A single D50 figure is not a specification, because two powders with the same D50 can differ by a factor of three in the fines below 10 µm, and fines are what drive oxidation loss, dusting, and filtration behaviour.

Product form	Size window	Typical D50	Principal use	Test basis
Granular	0.2-3 mm	n/a	Ladle addition, alloy briquetting	Sieve test, GB/T 6003.1 / ISO 3310-1
Coarse powder	150-500 µm	250-350 µm	Refractory gunning mixes, dense media	Sieve test plus laser diffraction
Fine powder	45-150 µm	80-110 µm	Aluminium alloying, cored wire fills	Laser diffraction, GB/T 19077
Micron powder	1-20 µm	5-10 µm	Powder metallurgy, chemical synthesis, coatings	Laser diffraction plus BET surface area

Morphology should also be stated. Jaw-crushed and roller-milled material is angular and blocky, which packs well and flows badly; jet-milled material is more equiaxed with a sharper top cut but carries a higher surface oxygen level. For powder-metallurgy pressing, an angular particle with a broad distribution gives better green strength; for injection or slurry systems, a narrow distribution with a controlled top cut gives more stable viscosity. Tap density, measured under GB/T 5162, is a practical proxy: a milled silicon powder in the 45-150 µm range commonly taps at 1.3-1.6 g/cm³ against a true density of about 2.33 g/cm³, and a figure far outside that band signals either excessive fines or an agglomerated product.

Production Route from Furnace Silicon to Milled Powder

Silicon metal itself is smelted in a submerged-arc furnace from quartz with a silica content typically above 99% and carbon reductants such as metallurgical coke, petroleum coke, charcoal and wood chips. The overall reduction of silica by carbon proceeds around 1800-2000 °C in the reaction zone, producing liquid silicon that is tapped, cast, cooled and crushed. Furnace control of the charge, the electrode position and the gas permeability of the burden determines the iron, aluminium and calcium that the smelter can guarantee; milling cannot improve them, and every handling step can only add contamination.

The milling sequence for powder is therefore designed around contamination control as much as size reduction. Coarse crushing in a jaw or hammer crusher is followed by screening to remove the oversize that would overload the mill. Fine grinding then proceeds in a roller, ball, vibration or jet mill, with an integral air classifier returning oversize to the grinding zone. For grades at Si 3303 and above, the grinding chamber and media are lined with ceramic or polyurethane, or the mill is of the opposed-jet type in which the material never touches a metal surface; steel-media mills will pick up several hundred parts per million of iron from wear and will fail an Si 2202 iron ceiling within a few hours of operation.

Classification is the second control point. A dynamic classifier with an adjustable rotor speed can hold a top cut at 45 µm or at 20 µm, but the fines content still has to be managed, because the cyclone and bag-filter fraction is the most oxidized and the most dusting-prone part of the batch. Reputable mills either blend the collected fines back at a controlled ratio or sell them as a separate grade; a shipment in which the fine fraction has been quietly re-blended without re-analysis will show elevated oxygen and low apparent density.

The final steps are passivation, blending and packing. Very fine silicon powder oxidises slowly in air and more quickly in humid air, so storage in moisture-barrier liners and prompt consumption are part of the specification, not a logistics detail. Blending from several mill runs is normal and is how a mill holds a D50 window across a contract, but the blended silo must be sampled after blending, not before.

Quality Control and Analytical Methods

Sampling is the first thing to verify on a certificate. For a consignment of packed powder, incremental sampling from a defined proportion of bags, combined and reduced to a laboratory sample, follows the principles of ISO 3713 and GB/T 4010; a certificate that quotes an analysis without stating how the sample was taken cannot be compared with another certificate. Silicon and the major impurities are normally determined by X-ray fluorescence on fused beads or pressed pellets, cross-checked by ICP-OES after fusion or acid digestion for the low-level elements. Carbon and sulphur are determined by combustion in an induction furnace with infrared detection, and oxygen and nitrogen by inert-gas fusion, which is the only reliable way to separate surface oxide from dissolved oxygen in a fine powder.

A workable incoming inspection for silicon powder covers five items: silicon assay; iron, aluminium and calcium against the ordered grade; carbon and oxygen where the process is sensitive to them; particle size distribution with the fines fraction reported explicitly; and moisture, usually held at 0.5% maximum for packed material. Bulk chemistry by XRF alone will miss a size-related problem, and a size certificate alone will miss a grade substitution, so the two must be read together. Where a lot is destined for a regulated application, the analysis should also confirm the absence of the heavy elements that the end-use specification names, at the detection limit that specification requires.

Applications and What Each One Demands

In aluminium, silicon is the main alloying element of the Al-Si casting family, and powder is used both for alloying additions and for powder-metallurgy and brazing products. The controlling impurities are iron and calcium, because both degrade ductility and both are difficult to remove once in the melt; Si 441 and Si 3303 are the usual choices, and the powder must be dry and free of fines that would burn off at the melt surface before dissolving.

In steelmaking, silicon powder is a deoxidiser and an alloying addition, most often delivered through cored wire or injection rather than thrown into the ladle, because fine powder thrown on top of the slag is largely lost to the atmosphere. Here the controlling figures are silicon assay for recovery calculations, aluminium and calcium for inclusion chemistry, and moisture, since hydrogen picked up from a damp addition is a route to flaking in heavy sections.

In refractories, silicon powder acts as an antioxidant in carbon-bonded and monolithic products, protecting graphite and resin from oxidation at intermediate temperatures, and in some silica-based castables as a fine silica source after conversion. The requirements are consistent granulometry, low alkali content and low moisture; iron is less critical, so Si 553 is normally adequate.

In the chemical chain, silicon metal is the starting point for silicones, fumed silica and chlorosilanes, and here the powder or dust is fed to a fluidised or direct process reactor. Purity, particle size and surface state all affect reactivity, and the grade is normally Si 2202 or better. The photovoltaic chain requires material far beyond metallurgical grade, refined to electronic levels, and is a different product family from the powder sold to metallurgical customers.

Packing, Storage and Dust Safety

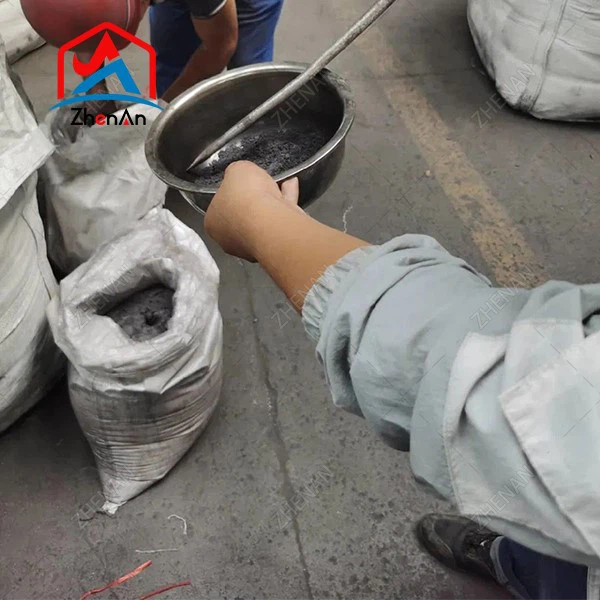

Silicon powder is packed in 25 kg multi-wall bags with a polyethylene liner, or in 1000 kg jumbo bags with a moisture barrier, and each pack should carry the grade, the lot number, the net mass and the analysis. Because the material is a combustible dust and a source of respirable crystalline silica when it contains quartz carry-over, the safety data sheet should address both hazards. Fine silicon powder can form an explosible dust cloud, so transfer points are bonded and grounded, electrical equipment in the handling area is selected for dust atmospheres, and accumulation on beams and ledges is cleaned rather than blown down. Respiratory protection against respirable dust is required wherever the fraction below 10 µm is handled dry.

Storage should be in a closed, dry warehouse on pallets, away from alkalis and oxidisers. Silicon reacts with strong alkali solutions to release hydrogen, and wet powder stored against a damp floor will both oxidise and, in contact with alkaline construction materials, present a gas hazard in a confined space. Stack heights should respect the bag construction, and lots should be consumed in the order received, because surface oxygen rises measurably over months of storage even in a sealed liner.

FAQ

Q: What is the difference between silicon metal powder and ferrosilicon powder?
Silicon metal powder is milled from material grading about 98.5-99.5% Si with iron at 0.1-0.5%, while ferrosilicon powder is milled from an iron-silicon alloy of 65-75% Si in which iron is intentional. They are not interchangeable in a silicon balance or in an iron-sensitive melt.

Q: What does the grade name Si 441 actually mean?
The three digits give the maximum iron, aluminium and calcium in tenths of a percent, so Si 441 permits Fe 0.4% max, Al 0.4% max and Ca 0.1% max, with silicon normally 99.0% minimum.

Q: Which particle size should be specified for ladle deoxidation?
Granules of 0.2-3 mm or coarse powder of 150-500 µm are usual for cored wire and injection, because finer material is carried off by the slag and the off-gas before it dissolves. A 45-150 µm powder is used when a fast dissolution rate matters more than yield.

Q: Why does oxygen appear on the certificate of a fine silicon powder?
Fine particles carry a surface oxide film that grows as size falls and as storage time increases. Oxygen is reported separately from metallic silicon because only the metallic fraction is available to the receiving process.

Q: How is the moisture limit set and tested?
Packed material is normally specified at 0.5% maximum, determined by drying a sample at 105 °C to constant mass. Moisture above the limit points to a failed liner or to storage in a humid warehouse rather than to the mill.

Q: Can a mill guarantee a top cut below 45 µm on a 20 tonne lot?
A classifier can hold a top cut, but the guarantee should be expressed as a percentage passing or retained at a stated sieve plus a D50 window. Ask for the distribution of the actual lot rather than a typical curve, and check the fines fraction separately.
